Web Application Architecture: Guide & Diagrams

Quick Answer: Web application architecture defines how the browser, application services, APIs, data stores, cloud infrastructure, and security controls work together. For a B2B SaaS, fintech, AI-enabled product, or enterprise portal, the right choice balances scalability, latency, compliance, observability, cloud cost, and delivery speed. It combines compatible patterns such as SSR, SPA, PWA, monoliths, microservices, and serverless AWS workloads.

Architecture sets the technical foundation for product decisions after discovery: how fast features can ship, how safely customer data is handled, how traffic spikes are absorbed, and how much cloud infrastructure costs at scale. A CTO should treat it as a decision framework, not a diagram created after development starts.

Designing the right architecture is difficult when organizations manage multiple cloud accounts, data stores, and integration patterns at once. This guide explains the UI delivery, application structure, execution models, and diagrams a technical leader can use when planning a scalable SaaS, AI application, fintech workflow, internal B2B platform, or customer-facing enterprise system.

Web application basics

A web application, or web app, is software built using technologies such as HTML, JavaScript, and CSS. It is typically accessed through a web browser and can support tasks ranging from shopping and banking to streaming media and business workflows.

The boundary between a website and a web application is a spectrum, not a strict divide. A content site may include account areas and interactive tools, while a business application may publish public pages. Architecture should follow the product’s actual interaction, data, security, and operational needs rather than the label used for the product.

What is web application architecture?

Web application architecture describes how a product’s components are constructed, connected, deployed, secured, and operated.

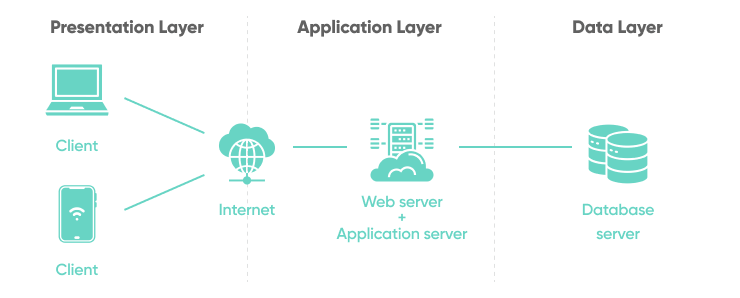

The familiar 3-tier structure is a useful conceptual model, even when modern systems distribute its responsibilities across managed services:

• Presentation layer: This is the user interface of the web application. It is responsible for HTML, CSS, JavaScript, routing, accessibility, front-end state, and browser-side performance.
• Application layer: This is the business logic layer. It processes user input, executes business rules, coordinates APIs, and handles authentication, authorization, and validation. Request handlers serve synchronous user or API calls. Queues and background workers handle asynchronous work such as notifications, imports, and document processing. These paths need separate scaling, timeout, retry, and failure-handling strategies. One or multiple web servers, containers, or serverless functions live within the application layer.
• Data layer: This layer is responsible for persistent data storage and retrieval. It can include PostgreSQL, MySQL, Redis, Elasticsearch, object storage such as Amazon S3, data warehouses, vector databases, external APIs, and event streams.

The 3-tier structure matters because clear boundaries reduce accidental coupling. A well-designed application can scale the front end, API layer, workers, and database independently. It can also apply targeted security controls and expose observability signals such as latency, error rate, throughput, and database saturation. The presentation layer should meet explicit accessibility requirements, including semantic HTML, keyboard operation, focus management, and sufficient contrast.

Why is web app architecture important for CTOs and product teams?

Architecture should be defined before major development begins because decisions become expensive to reverse after data models, deployment pipelines, and integration contracts are in production. It should support current user workflows and future constraints such as enterprise SSO, audit logs, multi-tenant billing, AI features, or regulated data processing.

A well-designed architecture should make the product:

• Scalable: Every web app should be designed to accommodate changes in traffic, data volume, and user workflows over time. A mature architecture uses horizontal scaling, cache strategy, queue-based background processing, read replicas, CDN delivery, and infrastructure-as-code to handle capacity without degrading reliability.
• Discoverable when needed: For public-facing content, the architecture can help search engines and generative AI systems access, render, and index pages. This is sometimes called Generative Engine Optimization (GEO). SSR, static generation, canonical URLs, structured data, clean internal links, and fast Core Web Vitals can improve discoverability. SEO and GEO are usually not priorities for authenticated internal tools.
• Secure: A well-designed architecture isolates web application components, reduces attack surface, and protects data with authentication, authorization, encryption, audit logging, secrets management, rate limiting, and secure network boundaries.
• Maintainable and Extensible: A well-planned architecture makes the codebase logical, organized, and easy to navigate. This improves the developer experience, allowing teams to fix bugs, add new features, and onboard new members more efficiently.

Without a solid architecture, a web application can become expensive to operate and risky to change. Common symptoms include slow API responses, database lock contention, brittle integrations, unclear ownership between modules, weak audit trails, hard-to-debug production incidents, and security controls added too late in the delivery process.

Security architecture principles for SaaS and B2B applications

Security is a cross-cutting design constraint, not a feature added after the user interface or API is complete. Use the OWASP Top 10 as a practical reference for common web application risks, including broken access control, injection, and cross-site scripting. A network firewall or web application firewall (WAF) can reduce exposure. Neither replaces secure application code, authentication, authorization, validation, and monitoring.

The browser is never an authorization boundary. Client-side checks can improve the user experience, but the server must authenticate every request and enforce authorization for every action and object. This prevents broken object-level authorization (BOLA/IDOR), where a user can access another customer’s record by changing an identifier.

For multi-tenant products, make tenant isolation an explicit early decision. A shared database with tenant identifiers and row-level security (RLS) can be efficient, while separate schemas or databases provide stronger isolation at greater operational cost. Regardless of the model, queries, background jobs, caches, file storage, search indexes, and analytics exports must all apply the same tenant boundary.

Apply parameterized queries or safe ORM APIs instead of building SQL with string concatenation. Keep credentials, API keys, and encryption keys out of source code and CI configuration. Inject them at runtime from a managed secret store such as AWS Secrets Manager, AWS Systems Manager Parameter Store, or HashiCorp Vault. Treat CI/CD pipelines and infrastructure-as-code as part of the attack surface. Use short-lived credentials, least-privilege deployment roles, protected changes, and dependency or image scanning.

Web application delivery and experience patterns

Before looking at backend structure and infrastructure, consider how the application delivers its user interface and capabilities. The following patterns are composable rather than mutually exclusive: an application can use server-side rendering for some routes, rich client-side interactions for others, and progressive web app capabilities across both.

This section covers three common patterns: server-side rendering, single-page application behavior, and progressive web app capabilities.

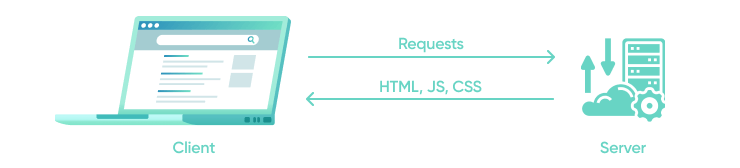

Server-side rendered application (SSR)

Server-side rendered applications (SSR) are web applications rendered on the web server instead of fully in the browser. The server executes application code, prepares HTML, and sends the rendered page to the browser.

SSR is a strong choice for content-heavy products, dashboards with authenticated views, B2B portals, marketplaces, and applications where search visibility, initial page load, and predictable access control matter. Production stacks often use Django, Ruby on Rails, Laravel, Next.js, Remix, server-side caching, CDN edge delivery, and database query optimization.

POPULAR SSR TECHNOLOGIES

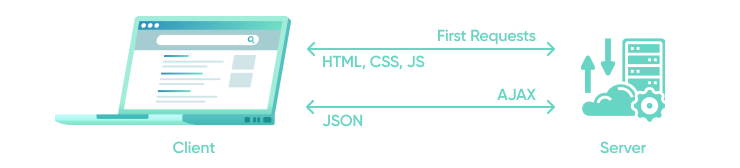

Single-page application (SPA)

A single-page application (SPA) is a web application that interacts with the user by dynamically rewriting the current page rather than loading entire new pages from the server. The page is updated in real time and is designed to provide a smoother, more responsive user experience.

SPA architecture works well for complex, interaction-heavy products such as analytics dashboards, workflow tools, real-time collaboration interfaces, and internal platforms. The tradeoff is operational: teams must manage client-side routing, API versioning, token handling, bundle size, and browser performance. Modern search engines can render JavaScript, but server rendering or pre-rendering can still improve reliability for non-Google crawlers, link previews, and performance-sensitive public pages.

POPULAR SPA TECHNOLOGIES

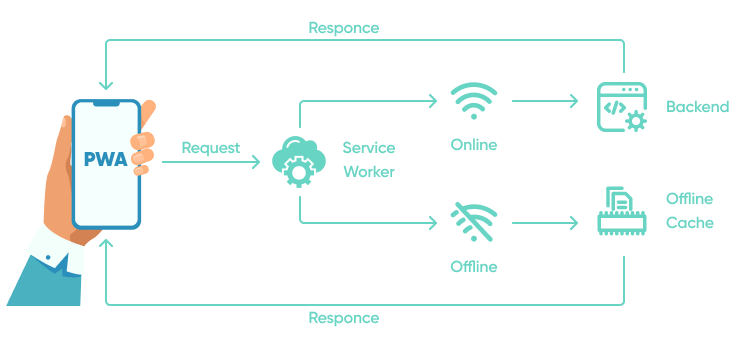

Progressive web application (PWA)

Progressive web apps (PWAs) are web applications that use modern web technologies to provide a user experience similar to that of a native application. PWA is not a rendering model separate from SSR or SPA; it is a set of capabilities that can be added to either approach.

Progressive web app architecture provides an app-like experience from a browser using service workers, web app manifests, offline cache, push notifications, and background sync. PWAs are useful for field operations, logistics, e-commerce, media, and B2B workflows where users need reliable mobile access without a native app release cycle. Teams should choose a cache strategy deliberately, such as cache-first, network-first, or stale-while-revalidate. They must also plan for cache invalidation, offline writes, and conflict resolution.

POPULAR PWA TECHNOLOGIES

Application decomposition and execution models

Applications can be structured and operated in multiple ways depending on domain complexity, team size, security requirements, release cadence, integration scope, and cloud cost tolerance.

Monoliths and microservices describe how application responsibilities are decomposed. Serverless describes an execution and operations model, which can support either a monolith or microservices. These choices can therefore be combined.

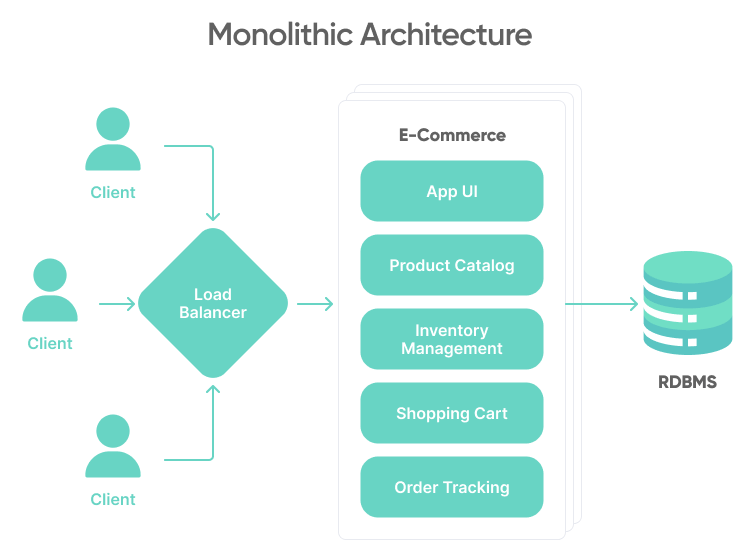

Monolithic architecture

We’ll start with the most basic, traditional model: monolithic architecture. It relies on a single, unified codebase for the user interface, business logic, and database access logic, with components sharing the same runtime environment.

The main benefit of monolithic architecture is operational simplicity. A well-structured monolith can share one codebase, one deployment pipeline, one relational database, and one observability surface. For MVPs, early-stage SaaS products, internal B2B platforms, and admin-heavy applications, a modular monolith built with Django, Rails, Laravel, or NestJS can be the fastest responsible architecture.

Monolithic architecture is not a good choice when separate product domains need independent release cycles, data ownership, infrastructure scaling, or reliability boundaries. The practical goal is often not "avoid monoliths", but "avoid an unbounded monolith with unclear modules."

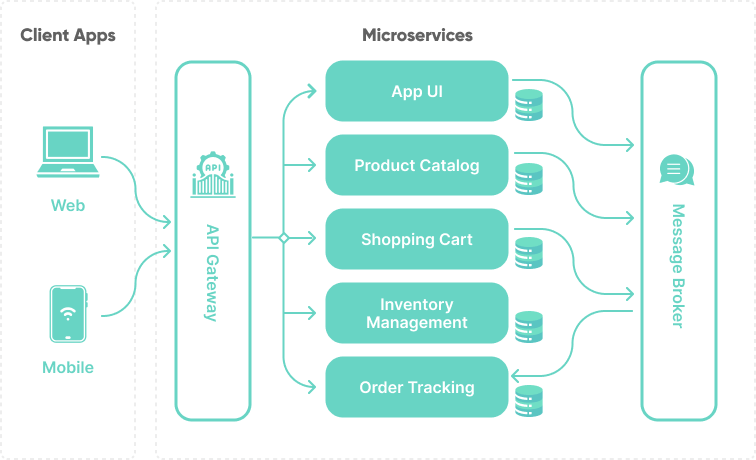

Microservices architecture

Microservices architecture breaks a large, complex application into smaller, independently deployable services. These services communicate through APIs, events, queues, or service meshes and are usually owned by separate teams or domains.

In a microservices system, each service is designed around a bounded context such as billing, identity, payments, notifications, recommendations, reporting, or document processing. This model helps teams deploy, scale, and monitor services independently. It also introduces distributed-system complexity: network latency, retries, idempotency, API contracts, service discovery, tracing, and data consistency. Teams commonly use idempotency keys, transactional outbox patterns, sagas, and deliberately designed eventual consistency rather than relying on distributed transactions across service databases.

Microservices architecture is a strong choice for complex SaaS, fintech, marketplace, AI, and enterprise products that need independent scaling, compliance boundaries, or multiple autonomous teams. It is rarely the best starting point for a small MVP unless the product already has clear domain boundaries and a team that can operate Kubernetes, containers, CI/CD, distributed tracing, and cloud networking.

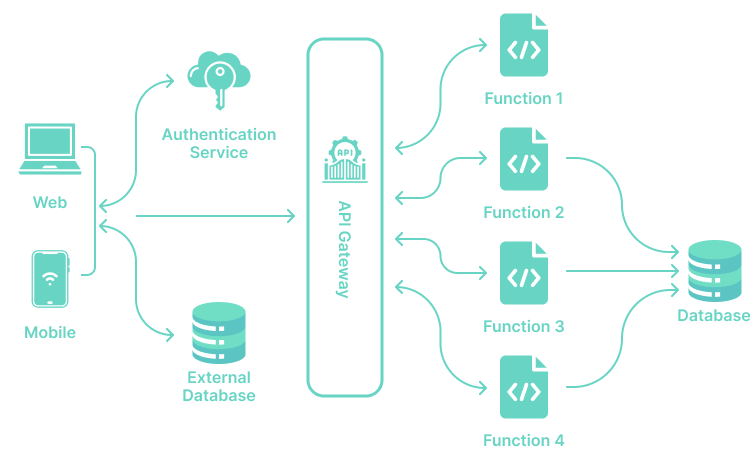

Serverless execution model

Serverless architecture uses managed cloud services to run application code without managing servers directly. It can host functions that belong to a modular monolith or to separate microservices. On AWS, a typical stack may include AWS Lambda, API Gateway, DynamoDB, S3, EventBridge, Step Functions, Cognito, SQS, SNS, CloudFront, and CloudWatch.

With serverless web applications, the cloud provider can automatically scale execution to meet demand, removing the need to provision additional servers. It is a good choice for spiky workloads, event-driven integrations, internal automation, webhook processing, AI enrichment jobs, document workflows, and APIs where pay-per-use economics are better than always-on infrastructure.

Typical serverless use cases include e-commerce events, gaming backends, media processing, real-time analytics, ML inference orchestration, scheduled jobs, and integration-heavy B2B workflows. Serverless can support low-latency workloads, but only when the design accounts for cold starts, provisioned concurrency, regional placement, payload size, downstream database latency, and asynchronous handoffs. Lambda concurrency can exhaust relational database connections during bursts. Use connection pooling or RDS Proxy where appropriate, or choose a datastore that fits the access pattern. The main architectural risks are observability gaps, IAM complexity, local testing, service limits, and vendor lock-in.

Each function should have a narrowly scoped IAM role rather than a shared, broad role. Limit public endpoints, validate event sources, and retrieve secrets from managed stores with least-privilege access. A large collection of small functions can otherwise create an expanded and difficult-to-review attack surface.

How do you choose UI delivery, application structure, and execution model?

The right architecture is the one that matches business risk, product stage, team capacity, security requirements, and expected scale. A CTO should evaluate architecture with explicit constraints instead of choosing a pattern because it is popular.

Make the decision in three passes: first choose the UI delivery approach based on user interaction and discoverability; then choose a modular monolith or microservices based on domain boundaries and team autonomy; finally choose containers, managed services, or serverless based on workload shape and operational capacity.

• Main use or functionality of the app.
• Complexity of the app, including the number of screens, integrations, roles, and data workflows.
• End users’ needs, expectations, devices, and performance requirements.
• Expected traffic, traffic spikes, and data growth.
• Compliance scope, including SOC 2, ISO 27001, HIPAA, PCI DSS, GDPR, PSD2, or internal audit requirements.
• Security model, including authentication, authorization, encryption, secrets, tenant isolation, and audit logging.
• Cloud ecosystem, such as AWS-first deployment, containerized infrastructure, managed databases, or serverless services.
• Tolerance for ongoing maintenance and support.
• Experience and skill of your web developers, DevOps engineers, and data teams.
• Development budget, maintenance budget, and expected ROI.

Beyond these immediate factors, consider the long-term product roadmap. A project might start as a well-structured monolith because it is fast to develop and easy to deploy. If the monolith uses clear module boundaries, API contracts, event hooks, separate ownership for critical domains, dependency rules enforced in tooling, and schema boundaries within a shared database, the team can later extract services without rewriting the entire system.

For example, a SaaS MVP may start with Django, PostgreSQL, Redis, Celery, and AWS ECS or Elastic Beanstalk. A later enterprise version may add SSO, audit logs, tenant-level permissions, separate reporting workloads, OpenTelemetry tracing, and selected microservices for billing, AI workflows, or high-volume integrations. The architecture should make that evolution possible without premature distributed complexity.

Use the table below as a practical guide to UI delivery and experience patterns. The patterns can be combined within one product.

Use the table below as a practical guide to decomposition and execution choices. Serverless is compatible with either a monolith or microservices.

Architecture choices in practice

These examples illustrate compatible choices, not templates that every product should copy.

SaaS MVP with one product team

Start with a modular monolith, a relational database, background workers, and a server-rendered or hybrid UI. This keeps deployment, transactions, authorization, and operational ownership simple while the team learns which product domains need to evolve independently. Define module boundaries and tenant controls early so that billing, reporting, or integration workloads can be extracted later if they create a real scaling or ownership need.

Enterprise B2B platform with compliance requirements

Begin with the security and data model: enterprise SSO, audit trails, object-level authorization, tenant isolation, retention rules, and integration boundaries. A modular monolith can still be the right starting point, but selected domains such as identity, document processing, reporting, or high-volume integrations may justify independent services. Choose the deployment model only after defining reliability targets, data residency, recovery expectations, and the team’s ability to operate it.

Mobile or field workflow with intermittent connectivity

Use PWA capabilities on top of an SSR, SPA, or hybrid UI when installation, cached reads, and offline workflows provide clear user value. Design the synchronization contract before building the interface: decide which data can be cached, how offline writes are queued, how conflicts are resolved, and which actions must remain online. Keep server-side authorization in place when queued requests are eventually synchronized.

Visualizing architecture with diagrams

An architecture diagram visually represents a product’s structure, the relationship between its components, and the flow of data. A useful diagram is specific enough to guide engineering decisions but simple enough for stakeholders to understand. A useful diagram should:

• Provide developers important high-level context for the application they will be working on.
• Identify potential problems in the application architecture, and help in finding solutions to those problems before implementation begins.
• Gain stakeholder alignment on the web application software development and implementation plan.
• Document operational boundaries such as deployment units, managed cloud services, third-party APIs, network zones, observability tools, and data ownership.

For complex systems, create diagrams at more than one level instead of placing every detail on one page. The C4 model is a useful structure:

• System context: Users, external systems, and the product boundary.
• Containers: Deployable applications, data stores, queues, and major infrastructure services.
• Components: Important modules and responsibilities inside a container.
• Deployment: Cloud accounts, regions, network boundaries, runtime services, and operational controls.

C4 container example: modular SaaS application

The following container-level diagram shows a typical SaaS MVP. It identifies the deployable parts and their primary responsibilities without exposing implementation-level detail.

                    +-------------------------+
                    |       SaaS user         |
                    | Uses a browser or PWA   |
                    +------------+------------+
                                 |
                                 v
+----------------------------------------------------------------------------+
|                              SaaS application                              |
|                                                                            |
|  +------------------+       HTTPS       +-----------------------------+   |
|  | CDN / WAF        +-------------------> Web application             |   |
|  | Edge security    |                    | SSR, UI, API, auth          |   |
|  +------------------+                    +--+---------+---------+--+--+   |
|                                              |         |         |  |      |
|                                   async jobs |   SQL   |  files  |  |      |
|                                              v         v         v  |      |
|                                        +--------+ +----------+ +----+      |
|                                        | Queue  | | Postgres | | S3 |      |
|                                        +---+----+ +-----^----+ +--^-+      |
|                                            |            |         |        |
|                                            v            |         |        |
|                                       +---------+       |         |        |
|                                       | Worker  +-------+---------+        |
|                                       | imports |     reads / writes        |
|                                       | emails  |                            |
|                                       +---------+                            |
+----------------------------------------------------------------------------+
                                                        | OIDC / SAML
                                                        v
                                      +-----------------------------+
                                      | Identity provider / SSO     |
                                      +-----------------------------+

In this example, the web application and worker form a modular monolith. The queue separates slow or retryable work from user requests, while Postgres, object storage, and the identity provider have explicit operational and security boundaries. As the product grows, a workload should be extracted only when it needs an independent release cycle, scaling profile, or reliability boundary.

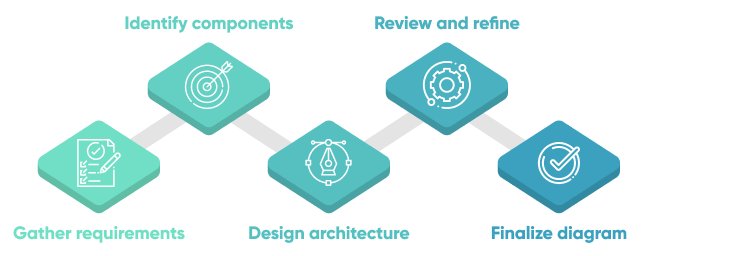

5 steps to create an architecture diagram for a web application

Creating an architecture diagram is often the responsibility of application architects or technical leads. But if you haven’t created one before, it can be difficult to know where to start. Let’s break it down into 5 basic steps:

1. Gather requirements: Review the existing system and understand the requirements of the web application. Consult stakeholders to define business logic, user roles, data sensitivity, integration points, latency targets, traffic assumptions, compliance constraints, and technical limitations.

2. Identify components: Identify all web app components across client and server sides. Include browsers, mobile clients, API gateways, web servers, containers, serverless functions, workers, queues, caches, databases, cloud storage, external APIs, identity providers, data access layers, and client-side UI.

3. Design the architecture: Design the architecture by drawing relationships between components. Use arrows for request flow, event flow, data replication, authentication paths, and third-party integrations. Color coding can separate presentation, application, data, security, and observability layers.

4. Review and refine: Review the diagram with developers, product owners, security stakeholders, and operations teams. Refine unclear dependencies, missing failure paths, unowned services, database bottlenecks, and compliance gaps before implementation.

5. Finalize the diagram: Finalize the diagram by adding component names, cloud services, database engines, protocols, version assumptions, ownership notes, and operational details before sharing it with management or client representatives.

What to include in a web application architecture diagram

The level of detail depends on your team’s needs, but in general, a diagram should include the following components:

• User: Show where users interact with or provide input to the application. This is sometimes labelled “mobile” or “web” to represent the user and front end together.
• Front-end/UI: Some architects show the user and front end as separate elements. If you do so, indicate what the user sees and interacts with.
• Database: This is where persistent data is stored, such as user accounts, messages, products, transactions, audit events, and tenant configuration.
• Cloud storage: Identify whether data is stored in the cloud and how storage connects to the application.
• Load balancer: If applicable, show where traffic is balanced or distributed.
• Edge security: Show network firewalls, WAFs, rate limits, and DDoS controls where relevant. These controls complement, but do not replace, application-level authentication, authorization, and input validation.
• Services/business logic: You can either include this as one icon indicating a series of services or business logic, or list representative services to provide more context.
• Servers: You may have one server or multiple servers. Either way, make sure to include them and indicate how they connect into your web application.
• APIs: These are the interfaces that allow the web app to communicate with other services or databases. Note key internal APIs, third-party APIs, webhook flows, API gateways, and versioning strategy.
• Observability: Include logging, metrics, tracing, alerting, and audit trails. Propagate OpenTelemetry trace context and correlation IDs through APIs, queues, workers, and serverless functions so a production incident can be followed across service boundaries. Production teams often use CloudWatch, Datadog, Prometheus, Grafana, OpenTelemetry, or Sentry.
• Security and compliance controls: Include identity providers, IAM roles, encryption boundaries, secrets management, audit logs, data retention, and network segmentation.

Conclusion

The right architecture gives a product team a controlled path to scale, security, and maintainability. A weak one creates visible costs later: slow releases, fragile integrations, database bottlenecks, security gaps, high AWS bills, poor observability, and painful rewrites.

Understanding SSR, SPA, PWA, monolithic, microservices, and serverless patterns helps teams make compatible choices based on real product constraints. Architecture diagrams then make those decisions reviewable by engineers, founders, CTOs, security stakeholders, and delivery teams before implementation begins.

Use this guide as a reference for your next web app architecture project. If your team is planning a scalable B2B application, SaaS platform, AI-enabled workflow, or cloud-native modernization, pair the diagram with explicit decisions about ownership, data, security, observability, and cost from the first architecture review.
